'SCYDOOR' Single Leaf 2 Hour Fire Rated Door
fire door supplier in malaysia fire door supplier in kl fire door manufacturer in ipoh fire door manufacturer in penang Fire door supplier in Ipoh

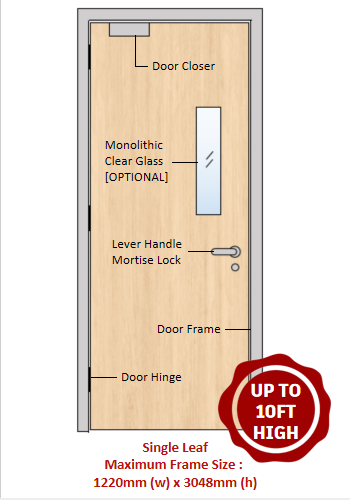

TWO (2) HOUR FIRE RATED DOORSET – SINGLE LEAF
Maximum External Size : 1220mm (w) x 3048mm (h) [4 feet (w) x 10 feet (h)]
Compatible Standards:
Technical Specifications:
Maximum External Size : 1220mm (w) x 3048mm (h) [4 feet (w) x 10 feet (h)]
Compatible Standards:
- MS 1073: Part 3: 1996 (Amd.1: 2003) - Specification for Fire Resistance Doorsets Part 3: Methods for Determination of the Fire Resistance – Type of Doorsets
- EN 1634-1:2014+A1:2018 - Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware - Part 1: Fire resistance test for door and shutter assemblies and openable windows
- EN 1363-1:2020 - Fire resistance tests - Part 1: General requirements
- SS 332:2018 - Specification for fire doors
- AS 1530.4 - Methods for fire tests on building materials, components and structures Part 4: Fire-resistance test of elements of construction
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ISO 12460-5:2015 - Determination of formaldehyde release - Part 5: Extraction method (called the perforator method)
- JIS A 1460:2015 - Determination of The Emission of Formaldehyde From Building Boards - Desiccator Method
Technical Specifications:
- Brand/Model: SCYDOOR / ‘SCY’ 2MFSL
- Type: Side Hung
- Door Panel Thickness: ± 55mm
- Door Frame Profile/Material: 140mm x 65mm, Double Rebated without Architrave / 1.2mm thick Brake Pressed Electro-Galvanised (E.G.) Steel
- Door Panel Stiles & Rails Material: Aspenite-Cred® Innovated Strand Board
- Door Panel Core Material: Volcanite® Supreme Innovated Perlite Composite Board
- Vision Glass: Visionrex® 6mm thick Monolithic Clear Glass, Visible Area: 106mm x 606mm
- Intumescent Seal Material: IWAKO® 3006 30mm x 6mm Graphite Intumescent Seal
- Door Panel Edging: Wood Veneer Finishing All Round
- Mortise Lockcase Brand/Model: TOZUKA® Astra-ET Mortise Case
- Door Handle Brand/Model: TOZUKA® LH-1002 SUS 304 Tubular Lever Handle
- Cylinder Brand/Model: TOZUKA® IWPC80-S Euro Profile Cylinder
- Door Closer Brand/Model: TOZUKA® A-163B Size 3 Surface Mounted Door Closer with Back Check, Aluminum Anodized
- Hinges Brand/Model: TOZUKA® H-014 SUS 304 127mm x 89mm x 3mm 2BB Butt Hinge
